Machine Picture: 機器圖片：
Structural characteristics: 結構特性：
RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine unit is the equipment that applies the most popular double stage series of frothing sheet production.
RYJ-FP110/130型PSP發泡片材擠出機是應用*的雙級發泡片材系列生產的設備。
This equipment applies common-type polystyrene as material and immits high-pressure foaming agent. After extruding by the die, frothing, cooling, forming, and driving, it can rewind as PSP finished sheet products.
本設備采用共型聚苯乙烯為原料，注入高壓發泡劑，經模具擠壓、起泡、冷卻、成型、驅動后，可作為PSPPSP成品卷取。
This sheet material can be produced to different kinds of packaging containers after vacuum plastified forming; One-off Snack Box, Aquatic Tray, Supermarket Tray, Cake Tray, KT plate, Instant-Noodle Bowl, etc, which can be widely used in the packaging of food, fruit, advertisement brochures and industrial products.
本片材經真空塑化成型后可制成各種包裝容器; 一次性小吃盒、水產托盤、超市托盤、蛋糕托盤、KT盤、方便面碗等，可廣泛應用于食品、水果、宣傳冊和工業產品的包裝。
This machine features in advanced structure, stable performance, simple operation and high automation, etc.
該機具有結構先進、性能穩定、操作簡單、自動化程度高等特點。
Parameter: 參數：
Model 型號 | RYJ-FP 110/130 PSP | RYJ-FP 130/150 PSP |
Rated Power 額定功率 | 230kw | 250kw |
Capacity 生產力 | 300kg/hour | 450kg/hour |
Screw Size 螺桿尺寸 | Φ110 Φ130 | Φ130 Φ150 |
Cooling Way 冷卻方法 | Wind Cooling; Water Cooling 風冷，水冷 | Wind Cooling; Water Cooling 風冷，水冷 |
Butane Pressure 丁烷壓力 | 1.5Mpa | 1.5Mpa |
Sheet Width 片材寬度 | 650-1200mm | 650-1200mm |
Sheet Thickness 片材厚度 | 1.5-4mm | 1.5-4mm |
Dimension(mm) 尺寸 | 5500×1750×1600 7000×1750×1600 | 5500×1750×1600 7000×1750×1600 |
Weight 重量 | 20T | 24T |

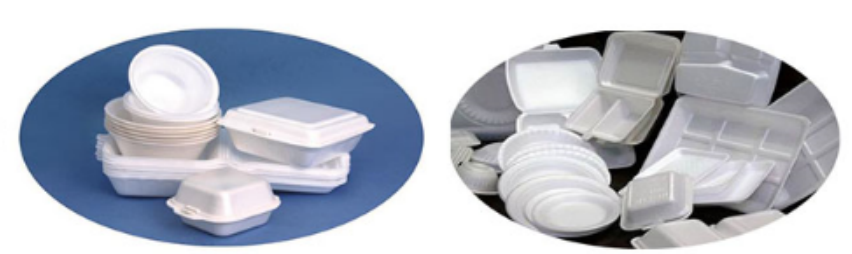

Sample Picture: 樣品圖片：

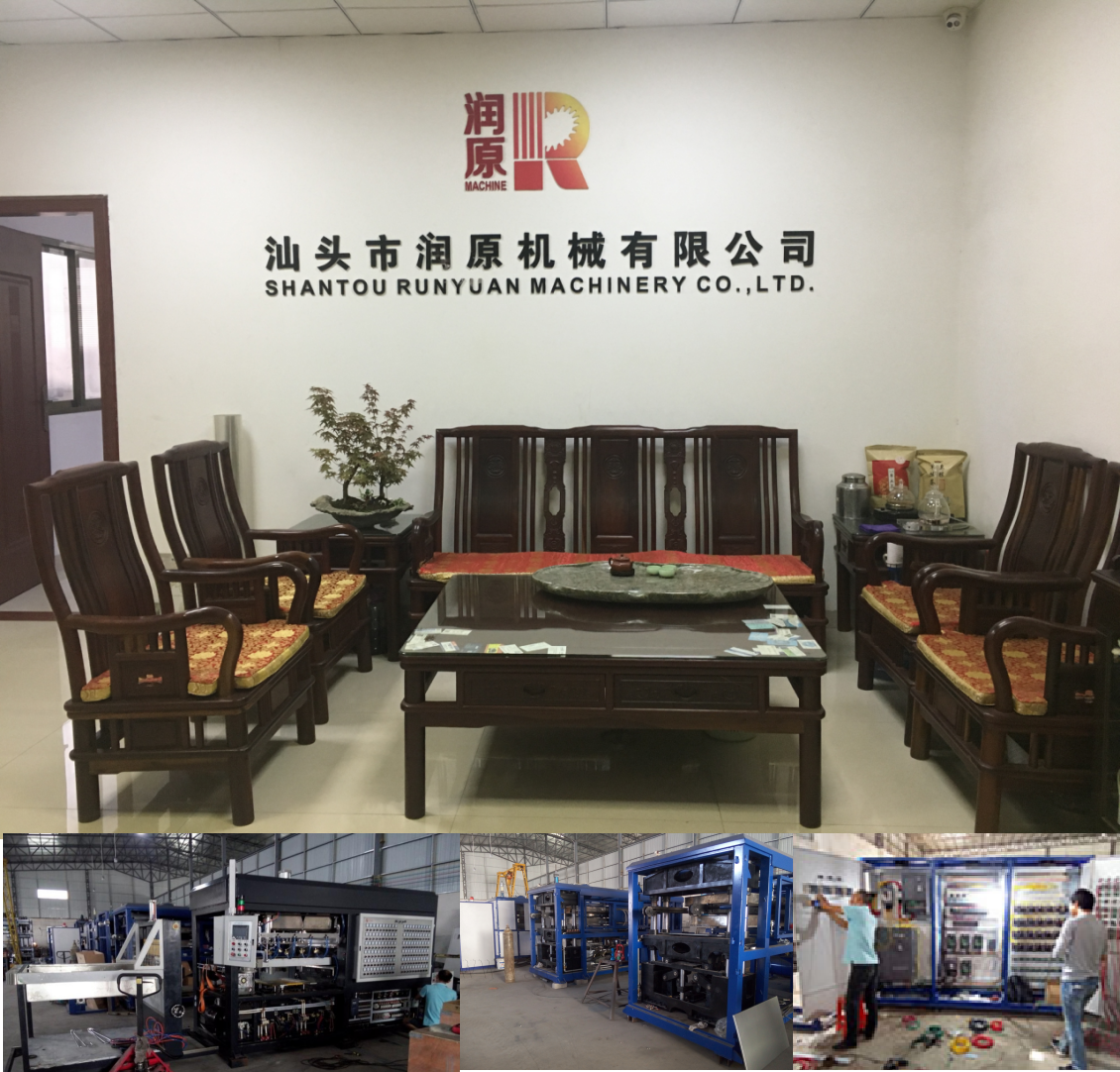

Factory Picture: 工廠圖片：
Contact Way: 聯系方式：
